产品参数：

型号:SC-9009

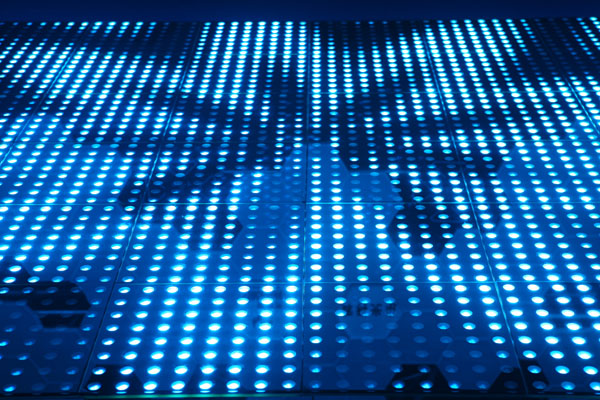

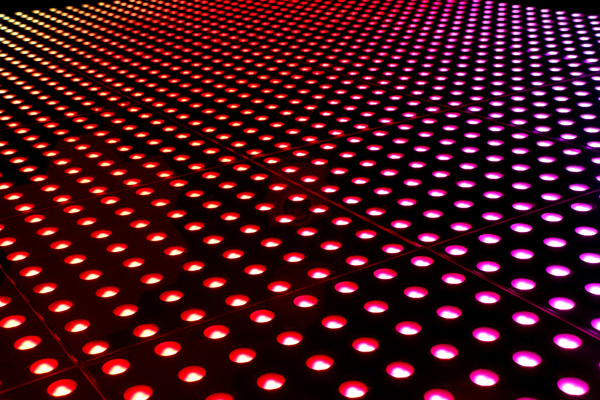

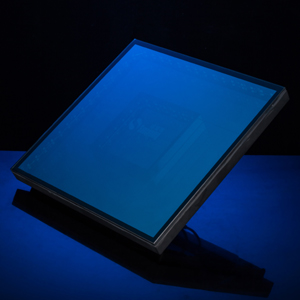

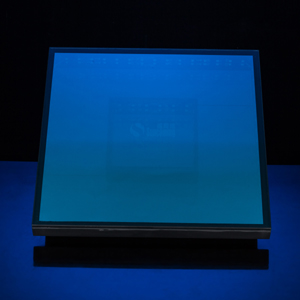

艺术迷惑你的视觉感官，点、线、面折射出空间三维立体之美。LED 3D地板屏，运用两层镜面无限循环反射拓展更多空间，多维度纵深感与炫光效应融入娱乐商业的设计，相得益彰，精彩纷呈。

The best artist can confuse your visual, point and line to plane can appear the 3D beauty of space. LED 3D infinite dance floor, use the two lays temper glass to appear the infinite and reflect and expand more space, the multiple dimensional and bright light match up with the entertainment design, mutual complementation.

输入电压: AC90～245V

输出电压: DC12V

最大功率: 30W

LED数量: 192颗

光源: 5050 SMD 3in 1

刷新率: 400Hz

亮度(CD/㎡): 700

分辨率(L*W): 8*8

面板材料: 钢化玻璃

底座材质: 高强度ABS

承受重量: 500KG/m2

防护等级 前: IP65 底:IP54

视角: 120°

工作温度: -20~ +60℃

使用寿命: ≥30，000小时

绝缘等级: CLASSE II

控制方式: SD脱机控制或联机控制

产品尺寸: L500*W500*H66mm

净重: 8.8KG

艺术迷惑你的视觉感官，点、线、面折射出空间三维立体之美。LED 3D地板屏，运用两层镜面无限循环反射拓展更多空间，多维度纵深感与炫光效应融入娱乐商业的设计，相得益彰，精彩纷呈。

The best artist can confuse your visual, point and line to plane can appear the 3D beauty of space. LED 3D infinite dance floor, use the two lays temper glass to appear the infinite and reflect and expand more space, the multiple dimensional and bright light match up with the entertainment design, mutual complementation.

产品特点:

1.平面呈现立体，效果时尚，炫丽，过目不忘；

2.灯光效果与整体环境空间设计相融合，相得益彰；

3..兼容TTL ,DMX信号，可采用功能强大的MATRIX控制；

4.安装简单，方便，快捷；

Product Features:

1.Using a panel to bring 3D vision, fashion, gorgeous, unforgettable.

2.Lighting effect match up with the whole condition space design, to be mutual complementation.

3.Adopt with TTL, DMX, & MADRIX

4.Easy installation, simple and fast.

应用领域：Application

KTV包房，酒吧过道，T台，舞池，商场过道，产品发布会、大型晚会，演唱会，户外广场。

KTV, bar corridor, T stage, dance stage, shopping corridor, production conference, huge party, concert, outdoor plaza, etc.
