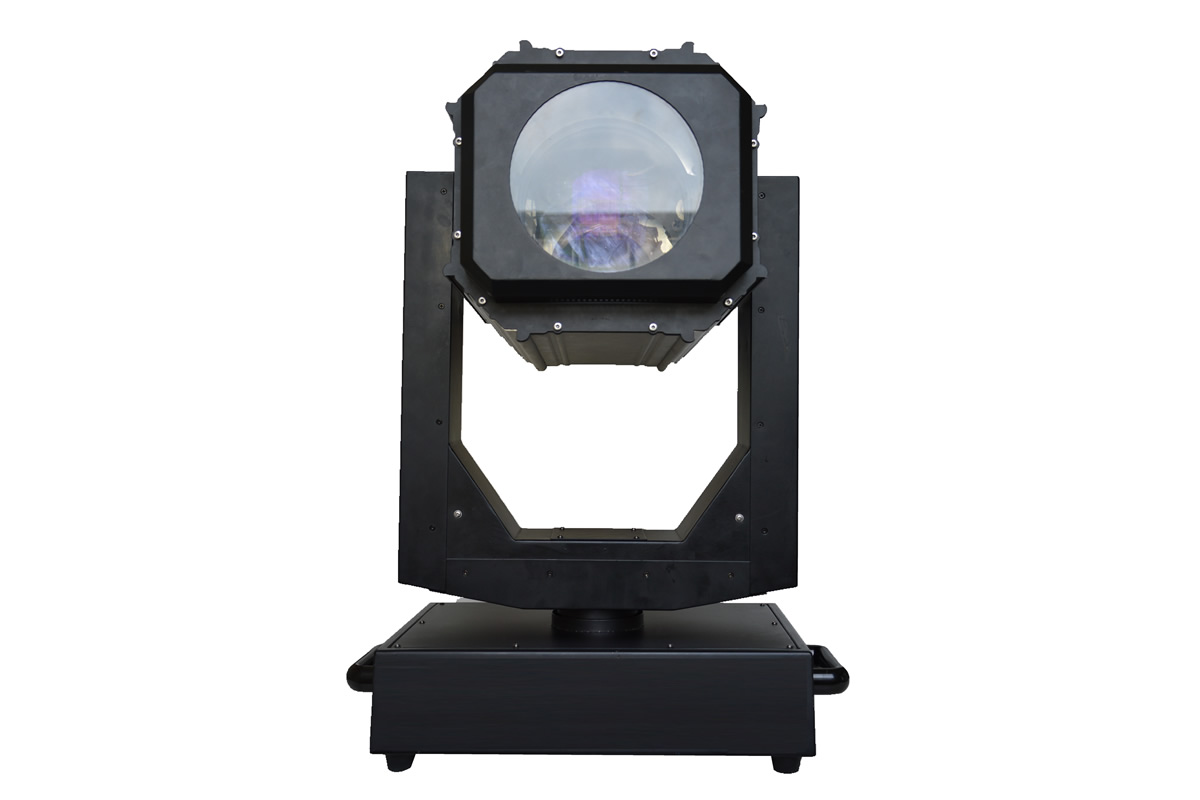

350W Waterproof Moving Head light
outdoor waterproof moving head light
Product Detail：
Model：SC-350B
SPECIFICATIONS
Light system: YODN 17R
Color System: Color Wheel: 14 + 1, rainbow effect
System design: design: 17 + 1 fixed pattern white
Focus System: Electric Focus
Linear dimming curve: 0% -100% linear dimming
Detail Info
Product Detail：
Model：SC-350B
SPECIFICATIONS
Light system: YODN 17R
Color System: Color Wheel: 14 + 1, rainbow effect
System design: design: 17 + 1 fixed pattern white
Focus System: Electric Focus
Linear dimming curve: 0% -100% linear dimming
Prism system: eight prism, rotating, macro function
Display: LCD display accommodate different mounting positions
Horizontal / Vertical:
OB-400 waterproof light fixtures do 540 °
horizontal and 210 ° vertical scanning, fast and smooth,
Fixture intelligent photoelectric correction system reset,
accidental malfunction,
Cooling system:
Using CFD software analysis and calculation of heat flow fixtures,
low-noise cooling system design,
Fan drive performance, low noise.
Power Module Design
Imported electronic ballasts and independent R & D power (+ 99% efficacy),
Lighting the whole power supply system more stable,
functional run more smoothly.
Channel DMX: 16CHS
Waterproof grade: IP 55
Dimensions: 570*470*950(length × width × height, head straight up)
Weight: 35kg
Model：SC-350B
SPECIFICATIONS
Light system: YODN 17R
Color System: Color Wheel: 14 + 1, rainbow effect
System design: design: 17 + 1 fixed pattern white
Focus System: Electric Focus
Linear dimming curve: 0% -100% linear dimming
Prism system: eight prism, rotating, macro function
Display: LCD display accommodate different mounting positions
Horizontal / Vertical:
OB-400 waterproof light fixtures do 540 °
horizontal and 210 ° vertical scanning, fast and smooth,
Fixture intelligent photoelectric correction system reset,
accidental malfunction,
Cooling system:
Using CFD software analysis and calculation of heat flow fixtures,
low-noise cooling system design,
Fan drive performance, low noise.
Power Module Design
Imported electronic ballasts and independent R & D power (+ 99% efficacy),
Lighting the whole power supply system more stable,
functional run more smoothly.
Channel DMX: 16CHS
Waterproof grade: IP 55
Dimensions: 570*470*950(length × width × height, head straight up)
Weight: 35kg
